Fully-integrated SHG/PDC-Device
Second Harmonic Generation, Parametric Down Conversion, Broadband frequency conversion for CW/pulsed (picosecond) for application in single photon sources, datacom interconnects, spectroscopy and many more

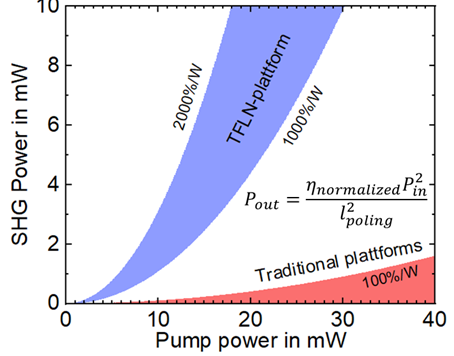

> 2000
%/Wcm²
Normalised Conversion Efficiency
Due to non-linear effect of periodically poled thin-film lithium-niobate
>1000
%/W
Efficiency
in frequency conversion
< 5
dB
Insertion loss
Roundtrip insertion loss
Technological lead
Unrivaled Efficiency
Explaining the company's name, the product is based on the non-linear response of thin-film lithium-niobate as a waveguide platform

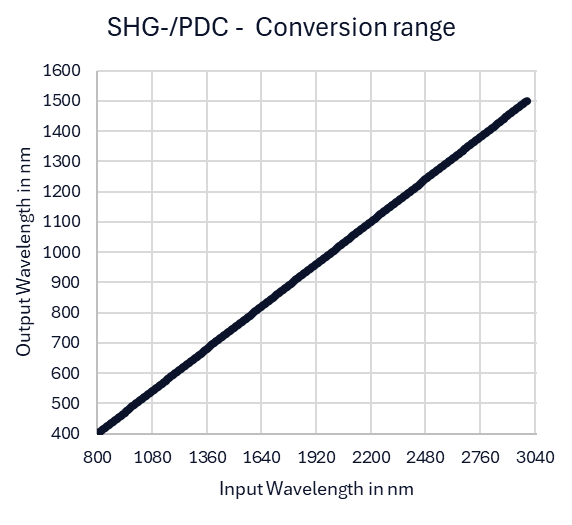

Spectral range
Standard & Custom
775 ◄► 1550 Telecom (C-Band)
655 ◄► 1310 Telecom (O-Band)
532 ◄► 1064 (Nd:YAG)
400 ◄► 800 (e.g. Ti:Sapphire)
Custom wavelength conversion (400 - 3000 nm)
Up to 4 optical channels with individual frequency.

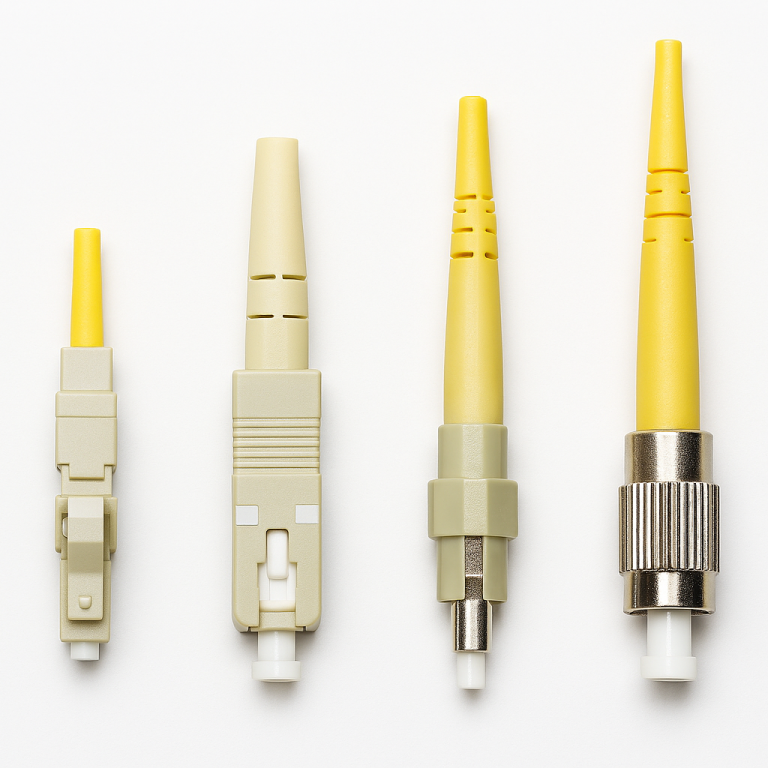

Compatibility
Optically packaged
Maximum (off-chip) pump power up to 100 mW
Insertion loss overall roundtrip < 5 dB

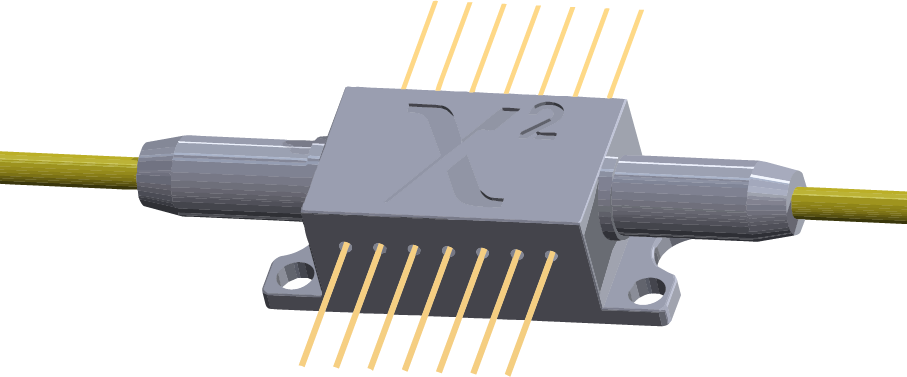

Integrability
Fully integrated

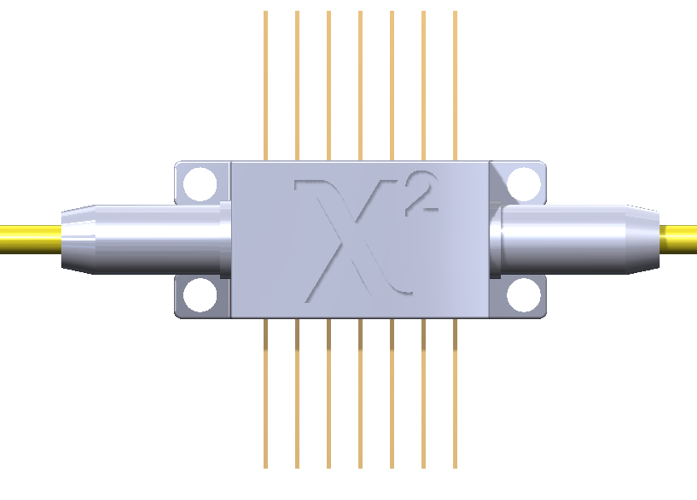

14-pin butterfly packaging
Temperature working range -20°C to 80°C
Temperature controlled (tunable)
Electrical power consumption < 100 mW
